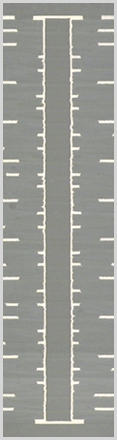

The Probe Card at Vtech PCB is a crucial tool designed to transfer electrical signals between the Test System and the individual chips on a wafer. It is equipped with probes, securely fixed to the PCB using epoxy, which make direct contact with the pads of the chip to be tested.The Load Board (SoC) Type Motherboard is a specialized testing interface designed for System-on-Chip (SoC) devices.
This process allows for accurate testing of the chip’s electrical functionality while it remains on the wafer. At Vtech, our Probe Cards play a key role in connecting Automatic Test Equipment (ATE) to the wafer, ensuring efficient and reliable testing of semiconductor devices.
With high-quality design and precision engineering, our Probe Cards ensure minimal signal loss and consistent performance, supporting rigorous quality control in semiconductor testing.
Specification | Unit (mm) | Unit (inch) |
Layer | 14~52 | 14~52 |
Base Material | FR-4 | FR-4 |
Min. Thickness | 4.8~6.5 | 0.19~0.26 |
Conductor Width | 0.075 | 0.003 |
Conductor Space | 0.1 | 0.004 |
Hole Diameter | ø 0.30 | ø 0.012 |
Surface Treatment | 1.3μm | 50μ” |
Etc | HPL | HPL |
Contact us today to learn more about our capabilities and how we can help you bring your ideas to reality.
